At the end of this chapter you should be able to:
Convert a set of relations to Boyce-Codd normal form.
Describe the concept of multi-valued dependency, and be able to convert a set of relations to fourth normal form.
Avoid a number of problems associated with decomposing relations for normalisation.
Describe how denormalisation can be used to improve the performance response of a database application.
This chapter relates closely to the previous two on database design. It finalises the material on normalisation, demonstrates how a fully normalised design can equally be represented as an entity-relationship model, and addresses the impact that a target DBMS will have on the design process. The issues relating to appropriate choices of DBMS-specific parameters, to ensure the efficient running of the application, relate strongly to the material covered in the chapters on indexing and physical storage. Information in all three chapters can be used in order to develop applications which provide satisfactory response times and make effective use of DBMS resources.
In parallel with this chapter, you should read Chapter 14 of Thomas Connolly and Carolyn Begg, "Database Systems A Practical Approach to Design, Implementation, and Management", (5th edn.).
In this concluding database design unit, we bring together a number of advanced aspects of database application design. It begins by extending the coverage of data normalisation in an earlier chapter, describing Boyce-Codd normal form (a refinement of the original third normal form) and providing a different view of how to generate a set of relations in third normal form. The chapter then looks at a number of important issues to be considered when decomposing relations during the process of normalisation. Finally, the important topic of physical database design is included, which shows the impact that DBMS-specific parameters can have in the development of an application. Many of these considerations have a direct impact on both the flexibility and the performance response of the application.
This chapter addresses a number of advanced issues relating to data normalisation. It is very important that you fully understand all the concepts and techniques introduced in the previous chapter, Data Normalisation.
You should not attempt this chapter until you are confident in your understanding and application of the following concepts:
Functional dependency
Fully functional dependency
Partial functional dependency
Direct dependency
Transitive (indirect) dependency
Determinants
Determinant
Determinacy diagrams
Normal forms
Un-normalised form (UNF)
First normal form (1NF)
Second normal form (2NF)
Third normal form (3NF)
The following is a brief summary of the first three normal forms:
1NF — Identify the determinants of data items, and through the removal of any repeating groups, arrange the data items into an initial first normal form relation.
2NF — Remove part-key dependencies from the relations in first normal form. I.e. for non-key attributes, remove those attributes that are not fully functionally dependent on the whole of the primary key (and form new entities where these attributes are fully functionally dependent on the whole primary key).
3NF — Remove any transitive (indirect) dependencies from the set of relations in second normal form (to produce a set of relations where all attributes are directly dependent on the primary key).
In this chapter we shall be extending the work from the previous chapter on the data for the Performer case study. As a starting point, we shall first present the determinacy diagrams and the third normal form relations developed for this case study.
Determinacy diagram: Performers and Fees
Figure 9.1
Relation in third normal form: Performers
Figure 9.2
Relation in third normal form: Fees
Figure 9.3
Determinacy diagram: Agents
Figure 9.4
Relation in third normal form: Agents
Figure 9.5
Determinacy diagram: Venues
Figure 9.6
Relation in third normal form: Venues
Figure 9.7
Determinacy diagram: Events
Figure 9.8
Relation in third normal form: Events
Figure 9.9
Determinacy diagrams: Bookings
Figure 9.10
Figure 9.11
The determinacy diagram below combines the previous two determinacy diagrams to show the overlapping keys for the Bookings relation, and illustrates the dependencies between the attributes event-id and event-name:
Figure 9.12
The details of the Bookings relation are shown below:
Relation in third normal form: Bookings
Figure 9.13
As we shall explore in this section, under certain circumstances there are anomalies that can occur for data that meets all the requirements for third normal form. Once these anomalies were identified and understood, database researchers developed the further normal forms we shall explore in this chapter.
There are no true insertion anomalies in the Bookings relation in third normal form; the details about each performer, agent, venue and event are also held in separate relations specifically for those entities, but there is data redundancy.
Relation in third normal form: Bookings
Figure 9.14
We can see that there is data redundancy in the Bookings relation, as every time a particular event is involved in a booking, both the event-id and the event-name need to be inserted into the Bookings relation.
Strictly speaking, we do not need to have both event-id and event-name in the Bookings relation, as each determines the other. If a mistake were to be made while inserting a new tuple, so that the event-id and the event-name did not match, this would cause problems of inconsistency within the database. The solution is to decide on one of the two determinants from the Events relation as part of the composite key for the Bookings relation.
We have noted that the event-id and the event-name determine each other within the Events relation, and this in turn creates overlapping keys in the Bookings relation. If the relationship between event-id and event-name were to break down, and a new event happened to have the same name as another event with a different event-id, this could create problems in the Bookings relation.
Performer Scenario 2
We can refer to a slightly altered database design as ‘Performer Scenario 2’, in order to demonstrate the effects of overlapping keys.
An issue that we need to examine is in the context of this slightly different database. In the example we having been using, the Events relation contains event-id, event-name and event-type. We can see that the performer-type in the Performers relation matches the event-type in the Events relation (e.g. actors performing in dramas, singers performing in musicals). If we now consider that the database holds only event-id and event-name as details about each event, this would affect the structure of the database.
Now, if we were to attempt to insert details about an event which had not yet been booked, we would not be able to do so as we would have an incomplete key in the Bookings relation. An event which has not been booked would have an event-id and an event-name, but no other attributes would have a value as there has been no booking.
If there were a change to the name of a particular event, this would need to be reflected in every booking involving that event. Some events may be booked many times, and if the change to the name of an event is not updated in each case, we would again find problems with maintaining consistent information in the database.
Figure 9.15
Here too, the solution is to identify either event-id or event-name as the determinant from the Events relation, so that the other of these two attributes is stored once only in the Events relation.
There are no deletion anomalies in the example we have been using. If we consider Scenario 2, however, we will find that deletion anomalies do exist.
Performer Scenario 2
We know that in Performer Scenario 2, there is no separate Events relation. If a booking is cancelled, we will want to delete the relevant tuple from the Bookings relation. This means that if we delete a tuple which contained details of an event that had no other booking, we would lose all information about that event.
Figure 9.16
In this section we introduce two new normal forms that are more ‘strict’ than third normal form. For historical reasons, the simple numbering of first, second and third deviates before getting to fourth. The two new normal forms are called:
Boyce-Codd normal form
Fourth normal form
When it comes to identifying the booking, there is an ambiguity, as the booking details could be identified by more than one combination of attributes.
As it is possible to identify details of each event either by the event-id or by the event-name, there are two possible groupings of attributes that could be used to identify a booking: performer-id, agent-id, venue-id and event-id, or performer-id, agent-id, venue-id and event-name.
Important
Boyce-Codd normal form (BCNF)
A relation is in Boyce-Codd normal form if all attributes which are determinants are also candidate keys.
Boyce-Codd normal form is stronger than third normal form, and is sometimes known as strong third normal form.
Transformation into Boyce-Codd normal form deals with the problem of overlapping keys.
An indirect dependency is resolved by creating a new relation for each entity; these new relations contain the transitively dependent attributes together with the primary key.
We know that we can identify a booking by means of the attributes performer-id, agent-id, venue-id and event-id, as shown in the determinacy diagram below.
Figure 9.17
We also know that we can identify a booking by using the attributes performer-id, agent-id, venue-id and event-name, shown in the next determinacy diagram.
Figure 9.18
When we combine the two determinacy diagrams shown above, we can see that we have an example of overlapping keys:
Figure 9.19
The details of the Bookings relation are shown later in this section.
Although overlapping keys are rare in practice (and some examples may appear rather contrived), we need to be aware that they can occur, and how to deal with them. The solution is simple: we need to decide on a single choice of attributes so that we have only one primary key. We know that event-name would not be an ideal choice of primary key. This is because it can be difficult to get names exactly right (e.g. "Quicktime" is not identical to "Quick Time"), and it may be coincidence rather than a rule that there is a one-to-one relationship between event-id and event-name (the relationship might break down). The choice of attribute to appear in the primary key is therefore event-id rather than event-name.
In Boyce-Codd normal form, we have six relations: Performers, Fees, Agents, Venues, Events and Bookings. The structure of the determinacy diagrams and content of the relations for Performers, Fees, Agents and Venues remain unchanged from third normal forms, and are not repeated here. There are changes to the Events and Bookings relations, which are illustrated below. A summary of the determinacy diagrams and the relations for this example are given in the 'Summary of normalisation rules' section of this chapter, together with an entity-relationship diagram.
Event details The choice of event-id as the primary key for the Bookings relation means that we can show the simpler representation of the determinacy diagram for event details, as we no longer have to consider the attribute event-name as a possible key.
Figure 9.20
Figure 9.21
Note that in Scenario 2, where there was no separate Events relation, it would now be necessary to create an Events relation in order to transform the Bookings relation from third normal form into Boyce-Codd normal form.
Booking details Now that we have decided that event-id is the more suitable attribute for use as part of the key for the Bookings relation, we no longer need to store the event-name, which is already held in the Events relation. The problem of the overlapping keys has now been resolved, and the key for the Bookings relation is the combination of the attributes performer-id, agent-id, venue-id and event-id.
Figure 9.22
The Bookings relation no longer needs to hold the attribute event-name, as this is already held in the Events relation.
Relation in Boyce-Codd normal form: Bookings
Figure 9.23
Exercise 1
Define Boyce-Codd normal form.
The normalisations process so far has produced a set of five relations, which are robust against insertion, amendment and deletion anomalies. If at this stage it were decided to introduce further details into the relations, it would still be possible to do so. Database designers and developers would be well advised to start again with the normalisations process if changes are proposed to the data. However, for this example, we will introduce some new information that only affects the performers.
We are now required to add further details to the Performers relation, to show their knowledge and skills in two other areas: languages and hobbies.
Important
Fourth normal form (4NF) A relation is in fourth normal form if there are no multi-valued dependencies between the attributes.
Multi-valued dependencies occur where there are a number of attributes that depend only on the primary key, but exist independently of each other.
The representation of languages spoken and hobbies would be a simple enough requirement if each performer spoke exactly one language and had only one hobby. However, our performers are multi-talented, and some speak many languages, and others have several hobbies. Furthermore, the languages and hobbies are not related to each other. This presents us with a problem: how can we represent this in the relation? We know we cannot have a group of items under the headings Languages and Hobbies, as this would contravene the rules for first normal form.
The relation below is an attempt at representing some of this information, using a small number of performers as an example.
Relation: Some-Performers-Example 1
Relation: Some-Performers-Example 1
Figure 9.24
If we look at this relation, while it conforms to the rules for first normal form (there are no repeating groups), there is still some ambiguity in its meaning. If we look at Baron’s hobbies, we can see that 'art' has been identified, but that there is no entry for the attribute 'language'. Does this mean that Baron does not speak any other languages? We know this is not true, because there are other entries that demonstrate that Baron speaks three languages. If we take the alternative view, and look at another entry for Baron, we can see that Baron speaks Italian, but from this entry it could appear that Baron has no hobbies. This approach is not the solution to the problem.
Another attempted solution pairs languages and hobbies together, but sometimes there is a language but no hobby (or the other way around).
Relation: Some-Performers-Example 2
Relation: Some-Performers-Example 2
Figure 9.25
In this new approach, we have entered each hobby against a language. However, we are still faced with problems. If Steed decides to give up poetry as a hobby, we will lose the information that Steed speaks English. If Baron’s French gets 'rusty' and is deleted from the relation, we will lose the information that Baron’s hobby is art.
Relation: Some-Performers-Example 3
Relation: Some-Performers-Example 3
Figure 9.26
In this next attempt, all languages are paired with all hobbies; this means that there is a great amount of redundancy, as basic data about the performers is repeated each time. We have a problem with Jones, who does not appear to have a hobby, which questions whether this entry is valid. In addition, if Steed learns a new language, it would be necessary to repeat this new language paired with Steed’s existing hobbies. This option is also an unsatisfactory method of solution.
The solution to this problem is to divide the information that we are trying to represent into a group of new relations; one containing the basic performer information as before, another showing details of languages spoken, and a third maintaining a record of hobbies.
This transformation deals with the problems of multi-valued facts and associated redundancies in the data; we can now convert the relation into three relations in fourth normal form.
Naturally, the new relations would hold data for all the performers, although only an extract from each relation is given here.
Relation in fourth normal form: Some-Performers
Figure 9.27
Relation in fourth normal form: Some-Performers-Languages
Figure 9.28
Relation in fourth normal form: Some-Performers-Hobbies
Figure 9.29
Exercise 2
Define fourth normal form.
The rules used for converting a group of data items which are un-normalised into a collection of normalised relations are summarised in the table below. Remember that in some cases we might choose not to normalise the data completely, if this would lead to inefficiency in the database.
The conversion from fourth normal form to fifth normal form is included for completeness. We will not be examining the definition of fifth normal form in detail; it is concerned with avoiding unnecessary duplication of tuples when new relations are created by joining together existing relations. The cause of this problem is the existence of interdependent multi-valued data items.
Figure 9.30
We now have five relations which are fully normalised, and can be represented by means of determinacy diagrams, relations, and an entity-relationship diagram. Each relation has a corresponding entity in the entity-relationship diagram.
Performer details
All performers appear in the Performers relation. The primary key is performer-id, and the other attributes are performer-name, performer-code (which identifies the performer-type) and performer-location.
Figure 9.31
Fully normalised relation: Performers
Figure 9.32
Fee details
Each performer is paid a fee depending on the performer-type. The rates of pay for each performer-type are stored in the Fees relation, together with a performer-code, which is the primary key.
Figure 9.33
Figure 9.34
Agent details
All agents are recorded in the Agents relation, where the primary key is agent-id, and the remaining attributes are agent-name and agent-location.
Figure 9.35
Figure 9.36
Venue details
There are a number of venues available for bookings, and these are stored in the Venues relation. The primary key is venue-id, and the other attributes are venue-name and venue-location.
Figure 9.37
Figure 9.38
Event details
All events which can be booked are listed in the Events relation; the primary key is event-id, and the other attributes are event-name and event-type.
Figure 9.39
Figure 9.40
Booking details
Every booking made by an agent, for a performer, at a venue, for an event, is stored in the Bookings relation. The primary key is a combination of performer-id, agent-id, venue-id and event-id; the remaining attribute is booking date.

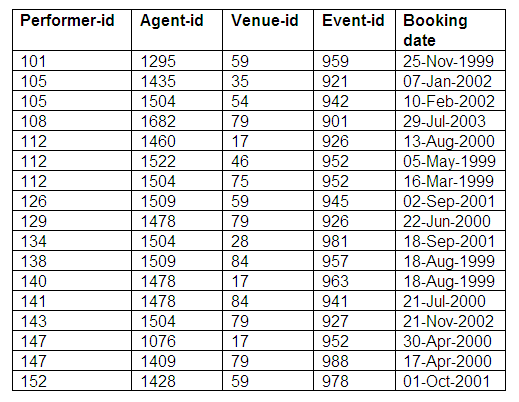

Figure 9.41
Figure 9.42
Note that this assumes there can only be one booking involving a particular combination of performer, agent, venue and event. This means that we cannot have multiple bookings made involving the same performer, agent, venue and event, as the primary key would be the same for each booking and we would therefore lose unique identification of bookings.
In order to accommodate multiple bookings involving the same entities, we could include the booking date as part of the key, but then we would not be able to distinguish between morning and evening performances on the same date (unless we included time as well as date).
The determinacy diagrams and relations, which are now fully normalised, can also be viewed as entities linked by relationships using the data modelling technique described in the chapter on entity-relationship modelling. Each determinacy diagram represents a relation, which in turn corresponds to an entity, as can be seen in the entity-relationship diagram below. The relationships that exist between each entity are summarised below the diagram.
Figure 9.43

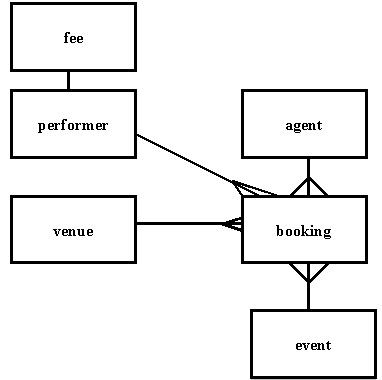

This entity relationship diagram represents the following:
Each performer may have many bookings, so the relationship between performer and booking is one-to-many.
A performer earns a fee, the value of which depends on the performer type, so the relationship between performer and fee is one-to-one (a performer can only be of one type).
An agent may make a number of bookings, so the relationship between agent and booking is one-to-many.
Any venue may have been booked several times, which makes the relationship between venue and booking one-to-many.
Each event may be involved in a number of bookings, so this relationship is also one-to-many.
The relationships that exist between performers, agents, venues and events are shown by their connections through the bookings.
Exercise 3
Why have so many normal forms?
When moving to a higher normal form, we often have a choice about the way in which we can decompose a relation into a number of other relations. This section examines problems that can arise if the wrong decomposition is chosen.
As an example, supposing within a government department responsible for intelligence gathering, we wish to record details of employees in the department, and the levels of their security clearance, which describe the levels of access employees have to secret information. The table might contain the following attributes:
Relation EMPLOYEE (Employee, Security_code, Level)
Where Employee is the primary key and provides some convenient means of identifying each employee, Security_code identifies the security clearance of that employee, and Level identifies the level of access to secret information possessed by anyone having that Security_code.
The determinants in this relation are:
Employee determines Security_code
Security_code determines Level
So we have two functional dependencies, respectively Security_code is functionally dependent on Employee, and Level is functionally dependent on Security_code. We also have a transitive, or indirect dependency, of Level on Employee; that is, an employee’s level of security clearance does depend on who that employee is, but only via the value of their Security_code.
This relation is in second normal form; i.e. it contains no repeating groups and no part-key dependencies, but it does contain a transitive dependency.
In order to convert relation EMPLOYEE to third normal form, we need to decompose it to remove the transitive dependency of Level on Employee. Until we make this decomposition, we have the following insert, update and deletion anomalies:
We cannot create a new Security_code until we have an Employee to whom we wish to allocate it.
If we change the Level of a Security_code, i.e. change the Level of information employees who hold that code can access, then in relation EMPLOYEE, we would have to propagate the update throughout all the employees who hold that Level.
If we remove the last Employee holding a particular Security_code, we loose the information about the Level of clearance assigned to that Security_code.
To perform the decomposition, suppose we split relation EMPLOYEE into two relations as follows:
Decomposition A
Relation EMPLOYEE-CLEARANCE (Employee, Level)
Relation SECURITY_LEVEL (Security_code, Level)
There are problems with this decomposition. Supposing we wish to change the security clearance for a given Employee. We can change the value of Level in relation SECURITY_CLEARANCE, but unfortunately, this update is not independent of the data held in relation SECURITY_LEVEL. In order for the change to have taken place in the SECURITY-CLEARANCE relation, one of two things must have arisen. Either the Employee in question has changed his/her Security_code, in which case no update need be made to relation SECURITY_LEVEL, or the Level associated with the Security_code possessed by the Employee has changed, in which case relation SECURITY_LEVEL must be changed to reflect this.
The problem has arisen because the two relations in decomposition A are not independent of one another. There is in fact a functional dependency between them: the fact that Security_code is functionally dependent on Employee. In decomposition A, instead of storing in the same relation those data items that are functionally dependent on one another, we have split the functional dependency of Security_code on Employee across the two relations, preserving the transitive dependency of Level on Employee in relation SECURITY_CLEARANCE. The problems this gives is that we cannot then make updates to one of these relations without considering whether updates are required to the other. As a further example, if we make updates to relation SECURITY_LEVEL, changing the Level of access associated with each Security_code, we must make sure that these updates are propagated to relation SECURITY_CLEARANCE, i.e. that the employees who possess the altered security codes have their Level attribute updated to reflect the changes in the SECURITY_LEVEL relation.
The solution to this problem is to ensure that when making decompositions, we preserve the functional dependencies of data items within the resulting relations, rather than splitting them between the different relations. For the above example, the correct decomposition would therefore be as follows:
Decomposition B
Relation EMPLOYEE_CODE (Employee, Security_code)
Relation ACCESS_LEVEL (Security_code, Level)
This decomposition allows us to manipulate the level of security granted to an individual employee (in relation EMPLOYEE_CODE) independently of that which specifies in general the level of access associated with security codes (maintained in relation ACCESS_LEVEL).
As the normalisation process progresses, the number of relations required to represent the data of the application being normalised increases. This can lead to performance problems when it comes to performing queries and updates on the implemented system, because the increased number of tables require multiple JOINs to combine data from different tables. These performance problems can be a major issue in larger applications (by larger we mean both in terms of numbers of tables and quantity of data).
To avoid these performance problems, it is often decided not to normalise an application all the way to fourth normal form, or, in the case of an existing application which is performing slowly, to denormalise an existing application. The process of denormalisation consists of reversing (or in the case of a new application, not carrying out in the first place) the steps to fully normalise an application. Whether this is appropriate for any given application depends critically on two factors:
Whether the size of the application is sufficient that it will run slowly on the hardware/software platform being used.
Whether failing to carry out certain steps in the normalisation process will compromise the requirements of the applications users.
Supposing, for example, we have a relation in which we wish to store the details of companies, the departments making up the companies and the locations of the departments. We might describe such a relation as follows:
Relation COMPANY (Company, Department, Location)
A row in the relation indicates that a particular Department of a specific Company is based at a particular Location. The primary key of relation COMPANY is the attribute Company. Assuming that Location depends directly on the Department of any particular Company, there is a transitive dependency between Company and Location, via Department. To convert relation COMPANY to third normal form, we would decompose it into:
Relation DEPARTMENT (Company, Department)
Relation LOCATION (Department, Location)
This would avoid the insert, update and deletion anomalies associated with second normal form relations, giving us the ability to manipulate the information about which departments make up a particular company quite independently of the information about where particular departments are located. This is the additional flexibility provided by taking the step of converting the application to third normal form. However, if we wish to store information about a large number of companies and departments, and we will not need to manipulate the location information about departments independently of the information about which departments make up a company, then we may choose not to proceed to third normal form, but to leave relation COMPANY in second normal form. Thus we'd retain the Company, Department and Location attributes in one relation, where they can be queried and manipulated together, without the need for JOINs.
If we choose to leave relation COMPANY in second normal form, what we will have lost in terms of flexibility is as follows:
The ability to create new departments at specific locations without allocating them to a specific company.
The ability to create new departments at specific locations without allocating them to a specific company.
Note that in this particular case, the update anomaly does not arise, as each department is assumed to appear only once in relation COMPANY. Users of the application may feel that the flexibility provided by third normal form is simply not required in this application, in which case we can opt for the second normal form design, with its improved performance.
The same arguments apply when considering whether to take any steps that lead to a higher normal form; there is always a trade-off similar to the above, between the increased flexibility of a more normalised design versus a faster-running application in a less normalised design, due to the smaller number of relations. When Relational database systems first arrived in the early '80s, their performance was generally slow, and this had an influence in slowing down their adoption by some companies. Since that time, a huge amount of research and development has gone into improving the performance of Relational systems. This development work, plus the considerable improvements in the processing speed of hardware, tends to suggest that the need to denormalise applications should be reduced; however, it remains an important option for application designers seeking to develop well-tuned applications.
A further technique for improving the performance response of database applications, is that of over-normalisation. This technique is so-called because it results in a further decomposition of the relations of an application, but for different reasons than that of the usual normalisation process. In normalisation, we are seeking to satisfy user requirements for improved application flexibility, and to eliminate data redundancy. In contrast, the decompositions made during over-normalisation are generally done so to improve application performance.
As an example, we shall take the case of a company possessing a large table of customer information, supposing the table contains several thousand rows, and that the customers are more or less equally divided into those based in the home country of the company and overseas.
There are essentially two approaches to over-normalisation of a table — we can divide it up either horizontally or vertically.
The most common approach is to split a table horizontally. In the case of the large customer table, we might split it into two tables, one for home-based customers, and the other for overseas customers.
The alternative approach of vertical partitioning might be used if the columns of a table fell naturally into two or more logical subsets of information; for example, if several columns of the customer table contained data specific to credit-limit assessment, whereas others contained more general contact and customer-profiling information. If this were the case, we might split the table vertically, one partition containing credit-limit assessment information, and the other containing the more general customer details. It is important when performing vertical partitioning in this way that the primary key of the entity involved, in this case, Customer, is retained in both partitions, enabling all of the data for the same entity instance (here for a specific customer) to be re-assembled through a JOIN.
Example of over-normalisation
So, for the process of over-normalisation, tables can be split into a number of horizontal or vertical fragments. For example, if the customers in the above example contained a 'region' attribute, which indicated in which region of the world they are based, then rather than a simple dual split into home-based and overseas customers, we might create a separate partition for each regional grouping of customers.
There are a number of reasons why relations may be fragmented in this way, most of which are directly concerned with improving performance. These objectives are briefly examined below:
Splitting a large table into a number of smaller tables often reduces the number of rows or columns that need to be scanned by specific query or update transactions for an application. This is particularly true when the partitions created are a good match to different business functions of the application - for example, in the customer table example above, if customers in different regions of the world undergo different types of query and update processing.
The smaller tables retrieved by queries restricted to one, or even a few, of a number of partitions will take up less space in main memory than the large number of rows fetched by a query on a large table. This often means that the small quantity of data is able to remain in memory, available for further processing if required, rather than being swapped back to disk, as would be likely to happen with a larger data set.
Just as a good match to business functions for the chosen partitions means the over-normalisation process will work well in improving performance, a poor match to transaction requirements could lead to a poorer performance, because the over-normalised design could lead to an increased number of JOINs.
Review question 1
Consider the following scenario.
A database is being designed to store details of a hospital’s clinics and the doctors who work in them. Each doctor is associated with just one hospital. Each clinic has a two-to-three-hour session during which a doctor who is a specialist in a particular field of medicine, sees patients with problems in that specialist area; for example, a diabetic clinic would be run by a doctor who is a specialist in diabetes. The same clinic may occur in a number of different hospitals; for example, several hospitals may run a diabetes clinic. Doctors may hold a number of different clinics. Clinic within the same hospital are always held by the same doctor. The relation is therefore of the following form:
Relation CLINIC (Hospital, Clinic, Doctor)
A row in the relation signifies that a particular clinic is held by a particular doctor in a specific hospital.
What are the determinants in the above relation?
Demonstrate that relation CLINIC is not in BCNF. Which normal form is it in?
Explain any insertion, update or deletion problems that might arise with relation CLINIC. How might these be resolved?
Review question 2
A library holds a database of the loans and services used by its members. Each member may borrow up to 10 books at a time, and may reserve sessions making use of library facilities, such as time on an Internet PC, a Multimedia PC, booking a ticket for a performance at the library theatre, etc.
Describe how the above scenario could be handled in the process of normalisation.
Review question 3
It is required to develop a database which can provide information about soccer teams: the number of games they have played, won, drawn and lost, and their current position in the league.
Write down your thoughts on the issues involved in supporting the requirement to provide the current league position, and how this is best satisfied.
Review question 4
If BCNF is a stronger definition of 3NF, and provides a more concise definition of the normalisation process, why is it worth understanding the step-by-step processes of moving from an un-normalised design to 3NF? Why is BCNF a stronger normal form than 3NF?
Review question 5
A binary relation is a relation containing just two attributes. Is it true that any binary relation must be in BCNF?
Review question 6
What is the difference between a repeating group and a multi-valued dependency?
Review question 7
True or false: Splitting a functional dependency between two relations when decomposing to a higher normal form is to be preferred to splitting a transitive dependency. Give reasons to justify your assertion.
Review question 8
Explain the difference between denormalisation and over-normalisation. What do the two techniques have in common, and what differences do they have?
Review question 9
A chemical plant produces chemical products in batches. Raw materials are fed through various chemical processes called a production run, which turns the raw materials into a final product. Each batch has a unique number, as does each product produced by the plant. We can also assume that product names are unique. Each production run results in the production of a quantity of a particular product. We assume that only one product is produced in any given production run, and so different production runs are required for different products. The design of a relation to store the details of production runs could look as follows:
Relation PRODUCTION_RUN (Product_no, Product_name, Batch_no, Quantity)
In which normal form is relation PRODUCTION_RUN? Explain the reasoning behind your assertion.
Resolve any anomalies that could arise in the manipulation of rows in the PRODUCTION_RUN relation.
Review question 10
A company wishes to store details of its employees, their qualifications and hobbies. Each employee has a number of qualifications, and independently of these, a number of hobbies.
Produce a normalised design for storing this information.
Review question 11
We saw earlier the issues surrounding storing some types of derived data; for example, the league position of soccer teams. Supposing we wish to store the number of points accumulated by such teams, given the rules that:
A win is awarded 3 points
A draw is awarded 1 point
There are no points for a defeat
Consider any problems that might be associated with the storage of the number of points obtained by teams in such a league.
Normalisation has been the second major technique we have examined for use in the design of database applications, the other being entity-relationship modelling. You are encouraged to discuss your feelings about the relative usefulness of these two approaches with respect to the following:
Learnability. Which of the two techniques have you found easier to learn? Do not settle for merely identifying which technique was easier to learn, but examine what it is about the techniques that makes one or other of them easier to learn.
Usability. Which of the techniques have you found easier to use so far in the chapters you have worked through, and which would you expect to be more useful in commercial application development? Be sure to back your assertions with an explanation of why you believe them to be true.
Finally, consider what you believe the relative strengths and weaknesses of the two design approaches to be, and consider to what extent these are or are not complementary.
